WEBER extrusion

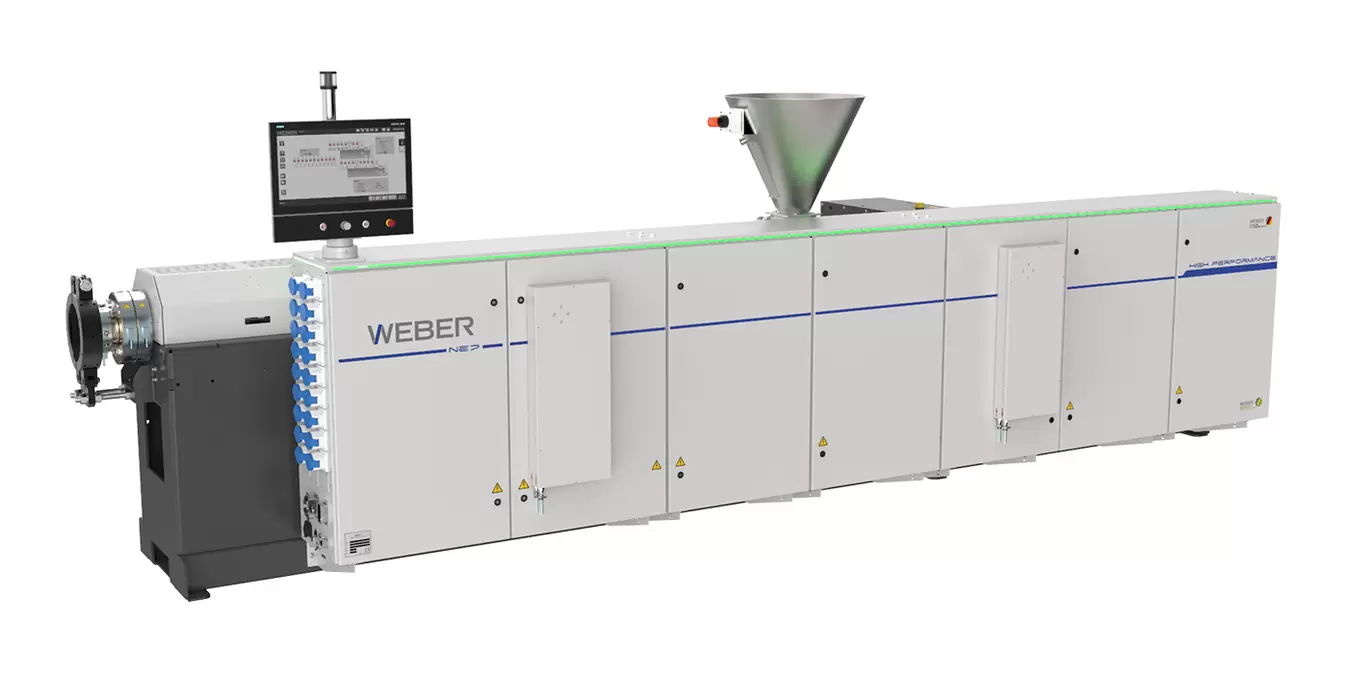

Grooved single-screw extruders
![6](img/6.webp)
Technical Data
Up to 1600
kg/h output capacity, depending on the material
50-90
mm diameter
Are you always looking for more?
Higher output: WEBER's grooved single-screw extruders impress with optimised grooved bush and screw design, which achieve increased output capacities.
Melting temperature: This concept is characterised by low melting temperatures, high output capacities and efficient energy management. The extruders of the high-performance line are available in diameters from 50 to 90 mm.
TECHNICAL SPECIFICATIONS
Grooved bushing extruder
for the highest output capacity
max. output*
NE5.40 | 500 kg/h |
NE6.40 | 850 kg/h |
NE7.40 | 1300 kg/h |
NE9.40 | 1600 kg/h |
max. output*
NE5.40 C | 450 kg/h |
NE6.40 C | 700 kg/h |
NE7.40 C | 1100 kg/h |
NE9.40 C | 1400 kg/h |
NE12.40 C | 2000 kg/h |
max. output*
NE3.30 | 100 kg/h |
