WEBER extrusion
DS wear measuring system
![5](img/5.webp)
± 0,01
mm Accuracy
360
Degree rotating scanner
Designed for the measurement
and screening of geometric parameters of barrel
components - the new WEBER measuring and inspection
system PROBIUS Ultimate
The system can be used as a tool for quality assurance and
assessing the wear of twin-screw barrels and executes a
non-contact scanning of radial sections, measuring different
geometric parameters such as diameter and wear
vertically/diagonally.
Functions and
technology
of the measuring system

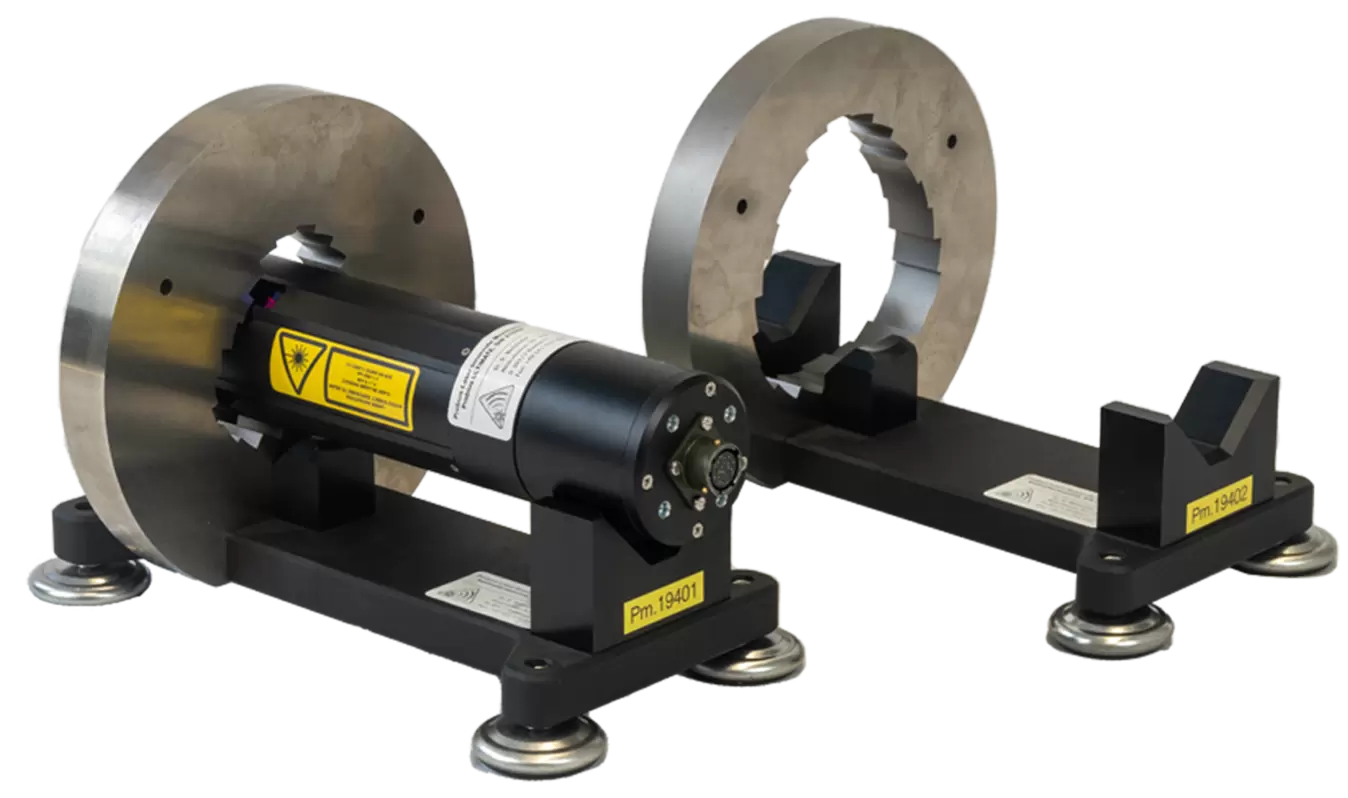

Due to different barrel sizes, the sensor is centred in the barrel by exchangeable rings. The movement along the component length is carried out manually via a multi-section rod. The measurement data is displayed in the software and can be saved as a data log. In this way, a change in wear (progression) can be created based on different operating hours. This serves as a reliable prognosis of wear behaviour and service life.
- Fully automatic & non-contact measurement
- Accuracy ± 0,01mm
- Component diameter Ø65mm - Ø125mm
- Rotating scanner (360° measurement)
- Creation of a data protocol
- Component specific centring
